Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]

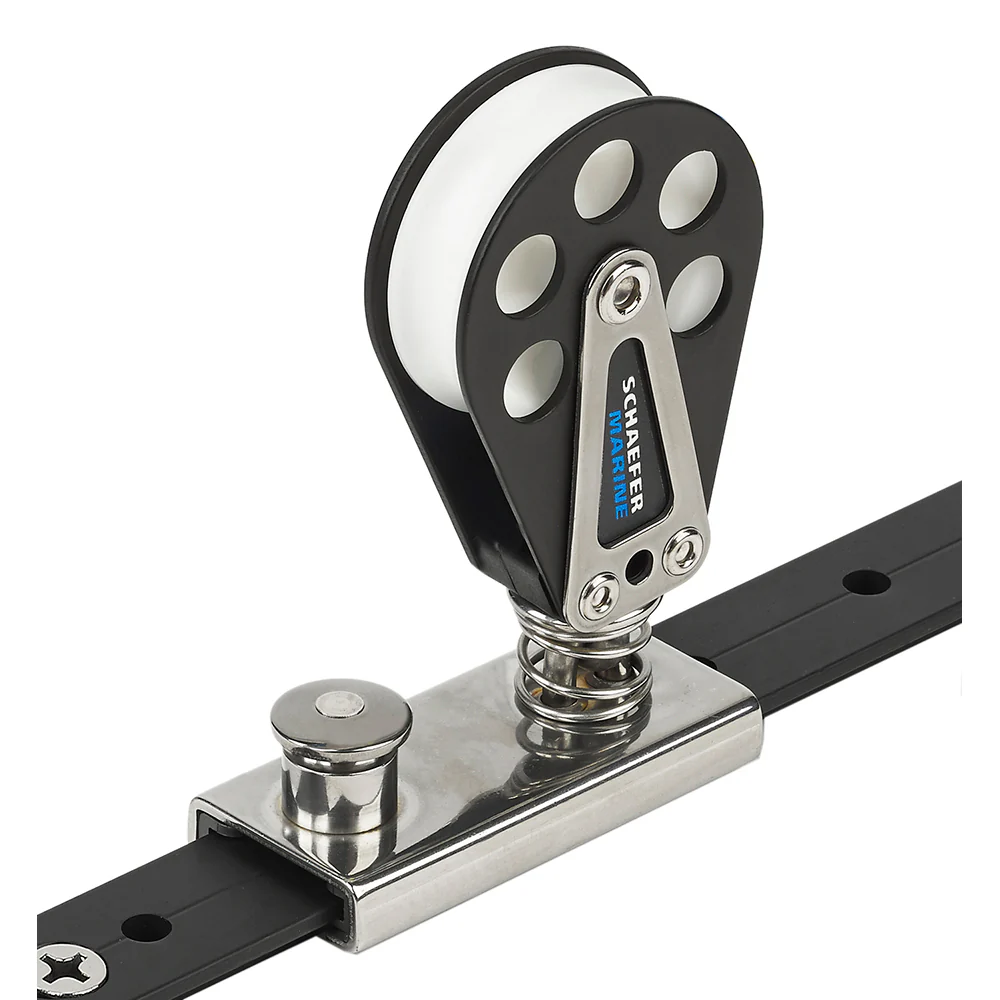

Spring Loaded/Lined Slide/Aluminum for 1" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1" x 1/8" (25 mm x 3 mm)
- Max. Boat Length- 27' (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3" (76 mm)
- Width 1-1/4" (31 mm)
- Height 4-5/32" (105 mm)
- Bearing Height 2-7/32" (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
$61.18
Original: $203.95
-70%Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]—
$203.95
$61.18Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Spring Loaded/Lined Slide/Aluminum for 1" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1" x 1/8" (25 mm x 3 mm)
- Max. Boat Length- 27' (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3" (76 mm)
- Width 1-1/4" (31 mm)
- Height 4-5/32" (105 mm)
- Bearing Height 2-7/32" (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
