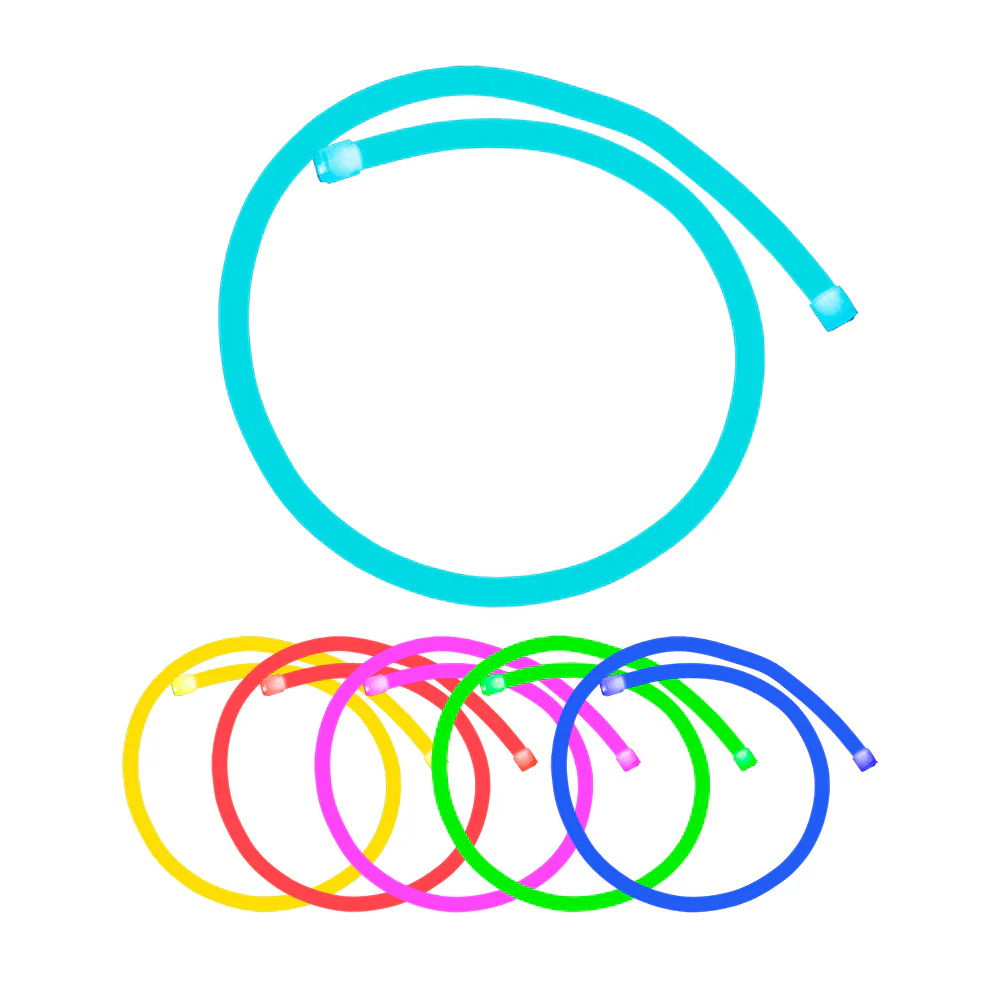

Shadow-Caster Marine Mini Neon Light Strip - 16' [SCM-AL-MINI-NEON-16]

Marine Mini Neon Light Strip - 16'

The Shadow-Caster® marine mini neon light strip provides diffuse color-changing RGB lighting to accent areas, hatches, steps, coves, shelves, and compartments. For use with center console boats, fishing boats, pontoon boats, sports boats, and yachts.

Slightly smaller than our standard neon marine light strip (SCM-AL-NEON), the SCM-AL-MINI-NEON has a smaller bend radius and a greater LED density (LEDs/meter).

The SCM-AL-MINI-NEON versions are recommended where the strip will be directly visible, as they have an integrated light diffuser that creates a pleasant, continuous lighting look.

Shadow-Caster® marine mini neon light strip comes in either 8 or 16-foot lengths and can be cut down to fit into a particular application. As there are no integrated control electronics, the strip can either be hardwired to be a certain color or connected to a Shadow-Caster® marine LED controller to fully control color and brightness.

Specifications:

• 16′ (5m) Length
• 16 Clips & 2 End Caps

Features:

• RGB color
• 120° beam angle
• 120 LEDs per meter
• 25mm cut segments
• 15W per meter
• 1.2A per meter
• 12V only
• 1″ (25mm) bend radius
• 0.4″ x 0.4″ (10mm x 11mm)
• 20′ (6m) lead wire
• IP67 waterproof design
• Silicone jacket material
• -30 – 60ºC operating temperature
• Compatible with SCM-AL-MINI-TRACK-1M

Specifications:

• Bulb Type: LED
• LED Color: Red/Green/Blue
• Voltage - Input Range (Volts): 12v
• Box Dimensions: 2"H x 10"W x 11"L WT: 2.2 lbs
• UPC: 855726005941

Quick Guide (pdf)
